Guide

VirtualBox

How to attach/configure image with VirtualBox?

  • Open VirtualBox click on New button
  • Type OS Name and select OS Type
  • and click Next
external
  • Here you can set Ram (memory) for your virtual machine
external
  • When you reach at this window select 3rd option Use an existing virtual hard drive file
  • Click on little folder to open file browser
  • Navigate to directory where VDI image is located
  • Select xx.vdi image and click OK
external
  • Once Virtual Machine is created, select virtual machine and click on Settings
  • In this picture you can see max video memory given to virtual machine. You can do that for better performance.
  • Also check Enable 3D Acceleration, if you get any problem with VirtualBox after enabling it then disable this option.
external
  • To use Network card that is already connected to Internet, navigate to Network
  • Select Bridged Adapter and adapter you are using (for Wifi select wlan and for Lan select eth).
  • Further you can play around with settings but these were important to configure. Also keep in mind that changing some settings can be a problem, you may not be able to boot virtual machine then you have to change those settings back.
external

How to install Guest Additions?

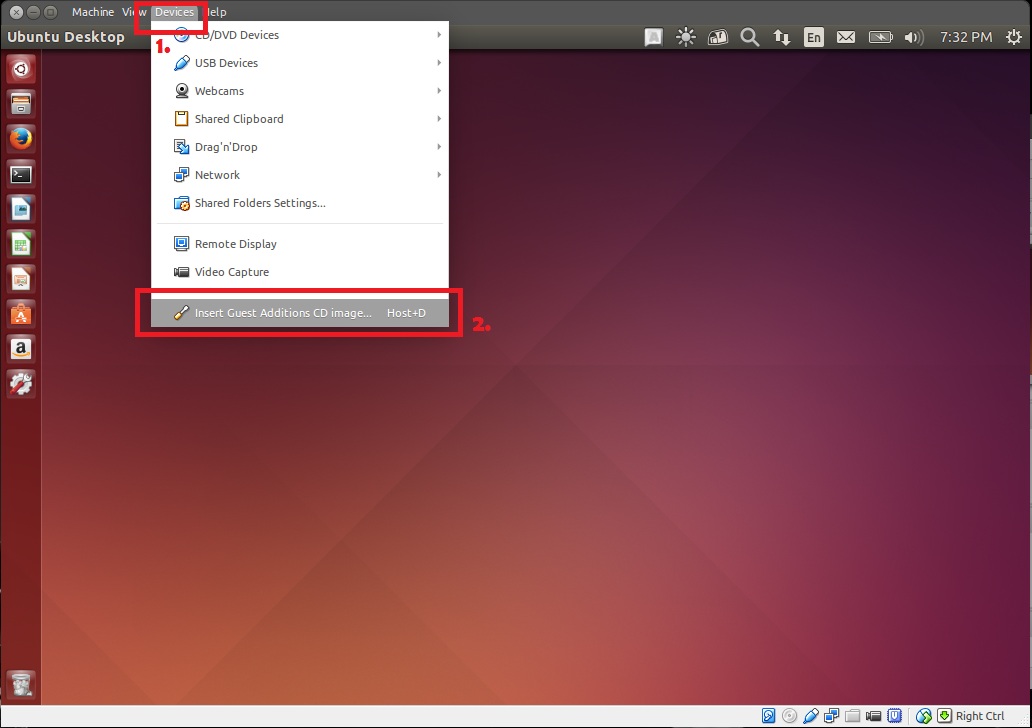

  • Once you turn-on the Virtual machine, click on Devices menu
  • Select Insert Guest Additions CD image… option
external
  • Some Operating systems auto-prompt to install Guest Additions (Like Ubuntu)
  • If you get it click on Run
  • Alternatively check following instructions
external

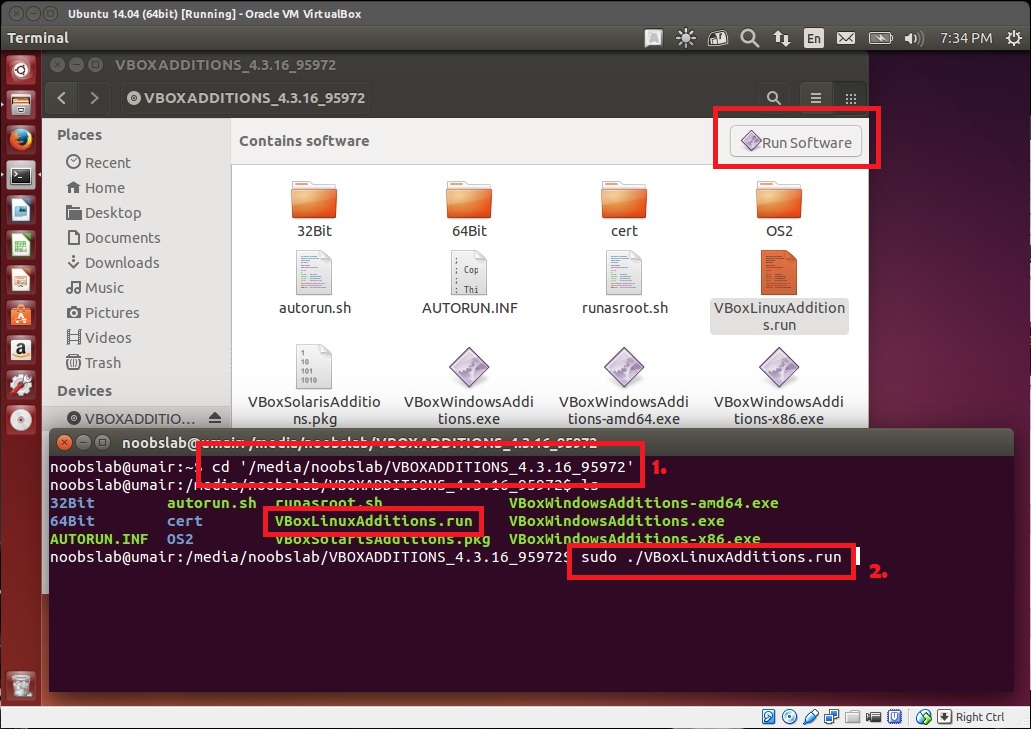

  • Open VBOXADDITIONS from file manager and copy file to some directory
  • Open Terminal and go to directory where you copied VBOXADDITIONS (If you see button on top right side of file manager saying Run Software then click on it to start installation and don’t follow next line instruction)
  • Now run command to start Guest Additions installation sudo ./VBoxLinuxAdditions.run
  • Once installation finished, just reboot virtual machine.
external



VMware

How to attach/configure image with VMware (VMDK file version)?

P-1

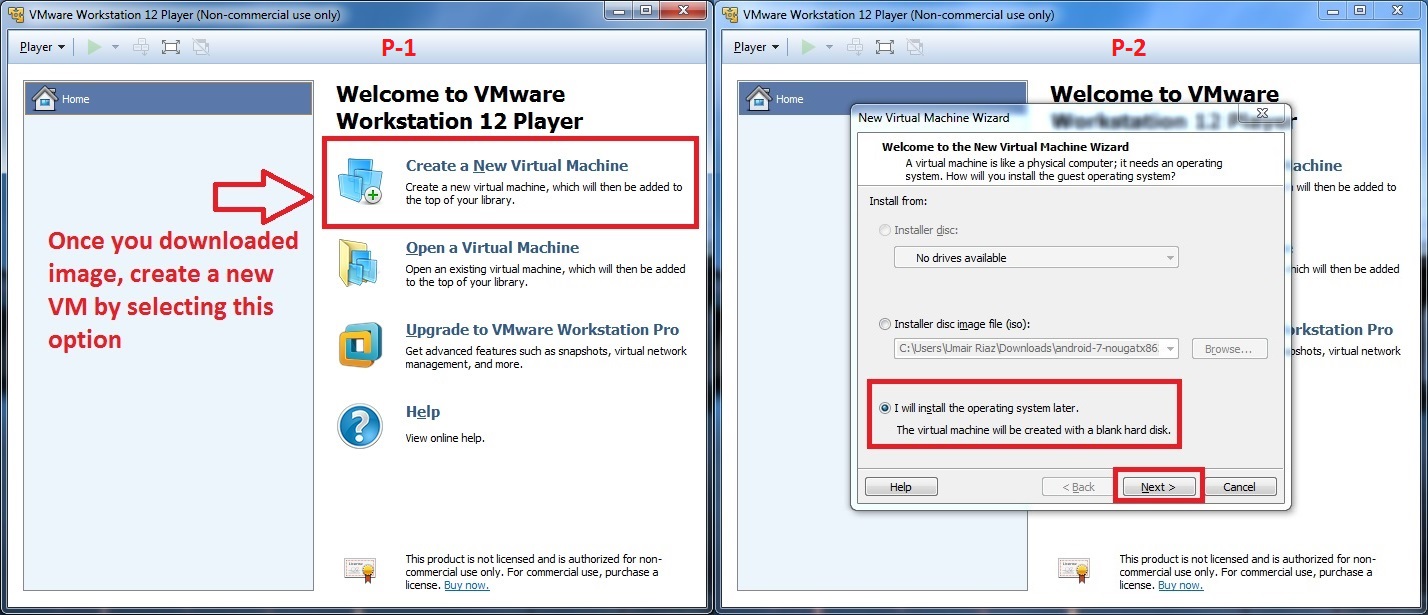

  • First of all Download image and extract it somewhere
  • Open VMware and click on Create a New Virtual Machine

P-2

  • Select “I will install the operating system later.”
  • click on Next
external

P-1

  • Select OS you wish to run
  • Click Next

P-2

  • Give any name to virtual machine
  • Set location where you want to save your VM files
external

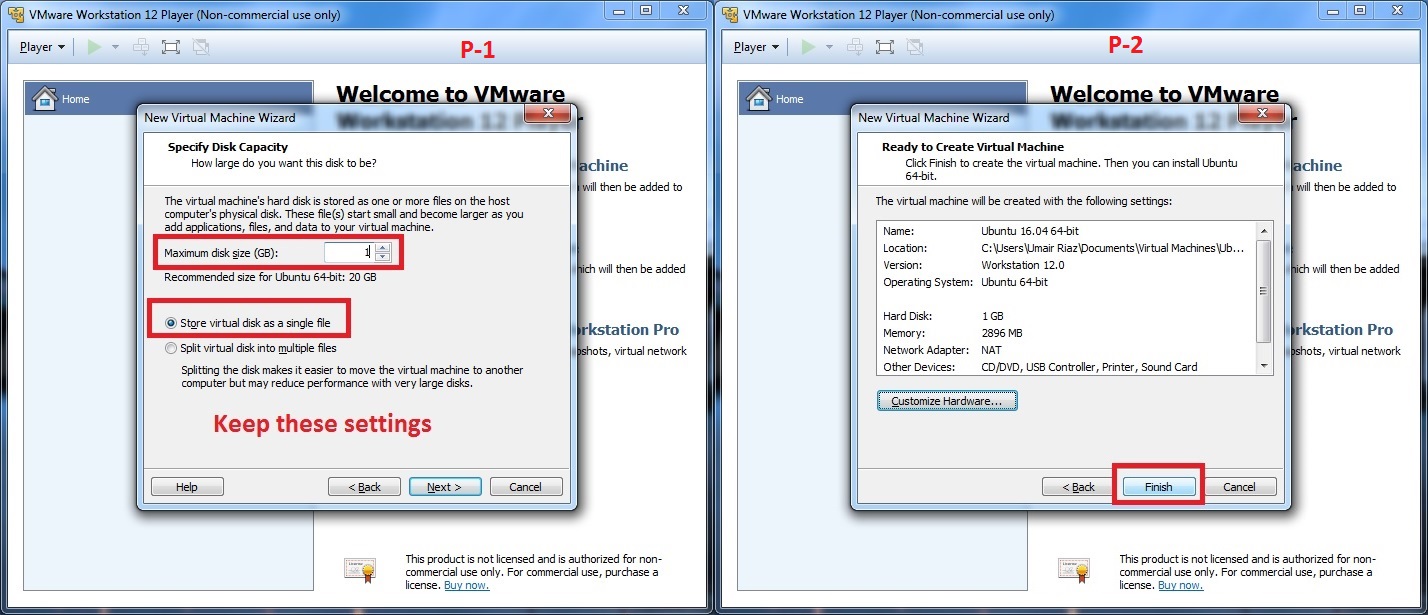

P-1

  • Set maximum disk size to 1GB
  • Select “Store virtualdisk as a single file”
  • Click on Next

P-2

  • Click on Finish
external

P-1

  • Select the VM you have just created
  • Go to “Virtual Machine Settings”

P-2

  • Select Hard Disk and click on Remove
  • Now click on Add
external

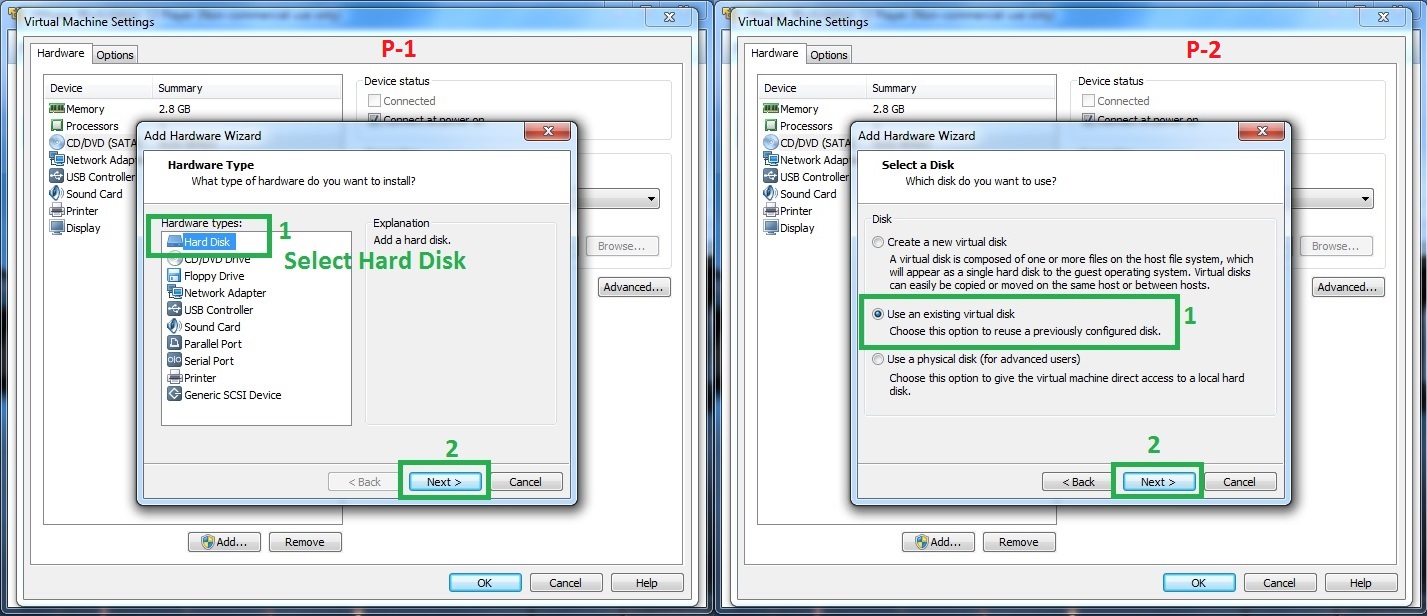

P-1

  • Select the Hard Disk option
  • Click on Next

P-2

  • Select Use an existing virtual disk
  • Now click on Next
external

  • Click on browse button
  • Navigate to location where you have extracted VMDK
  • Select and click on Open
external

  • Now click on Finish
  • It will open a dialog, select Keep Existing Format
  • Now click on OK and you are ready to use your VM
external

How to attach/configure image with VMware (VMX Version)?

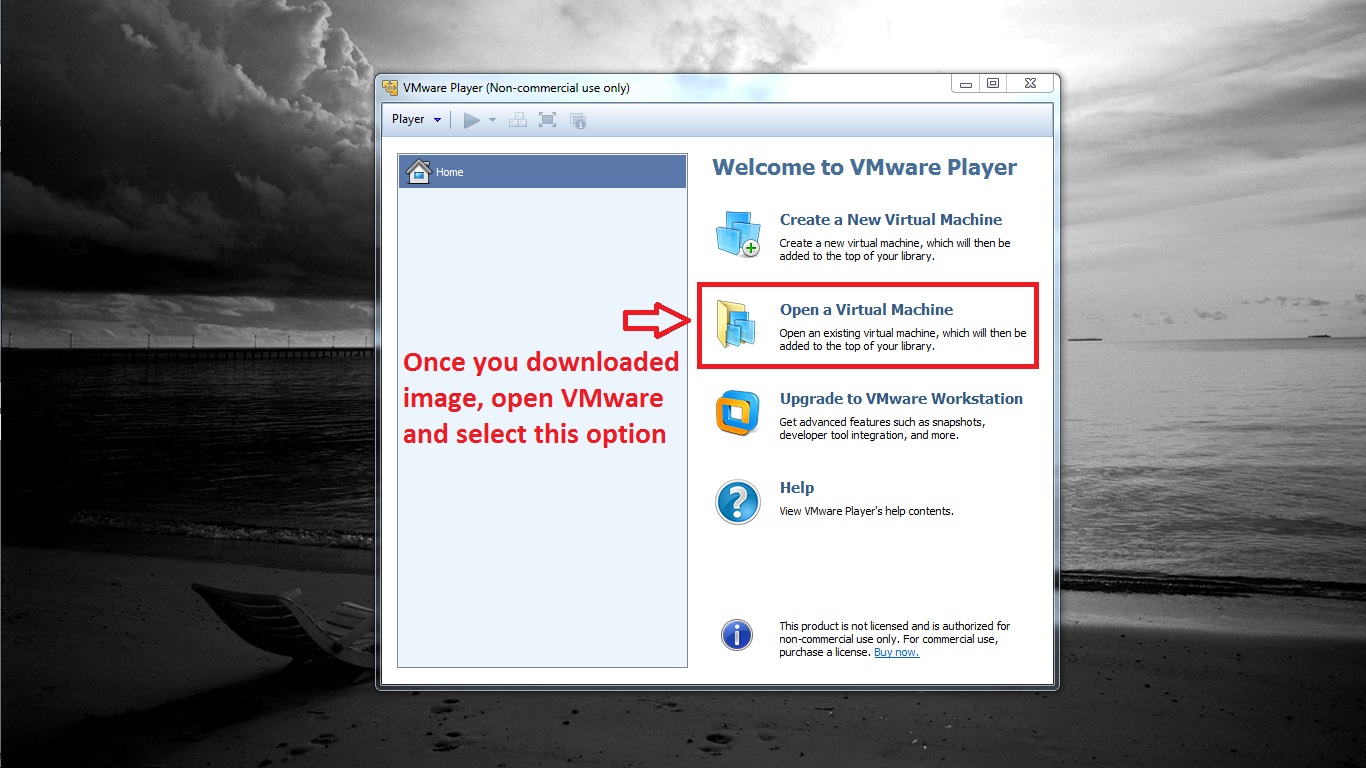

  • First of all Download image and extract it somewhere
  • Open VMware and click on Open a Virtual Machine
external
  • Navigate to directory where you extracted the image and select xx.vmx image.
  • Click open
external

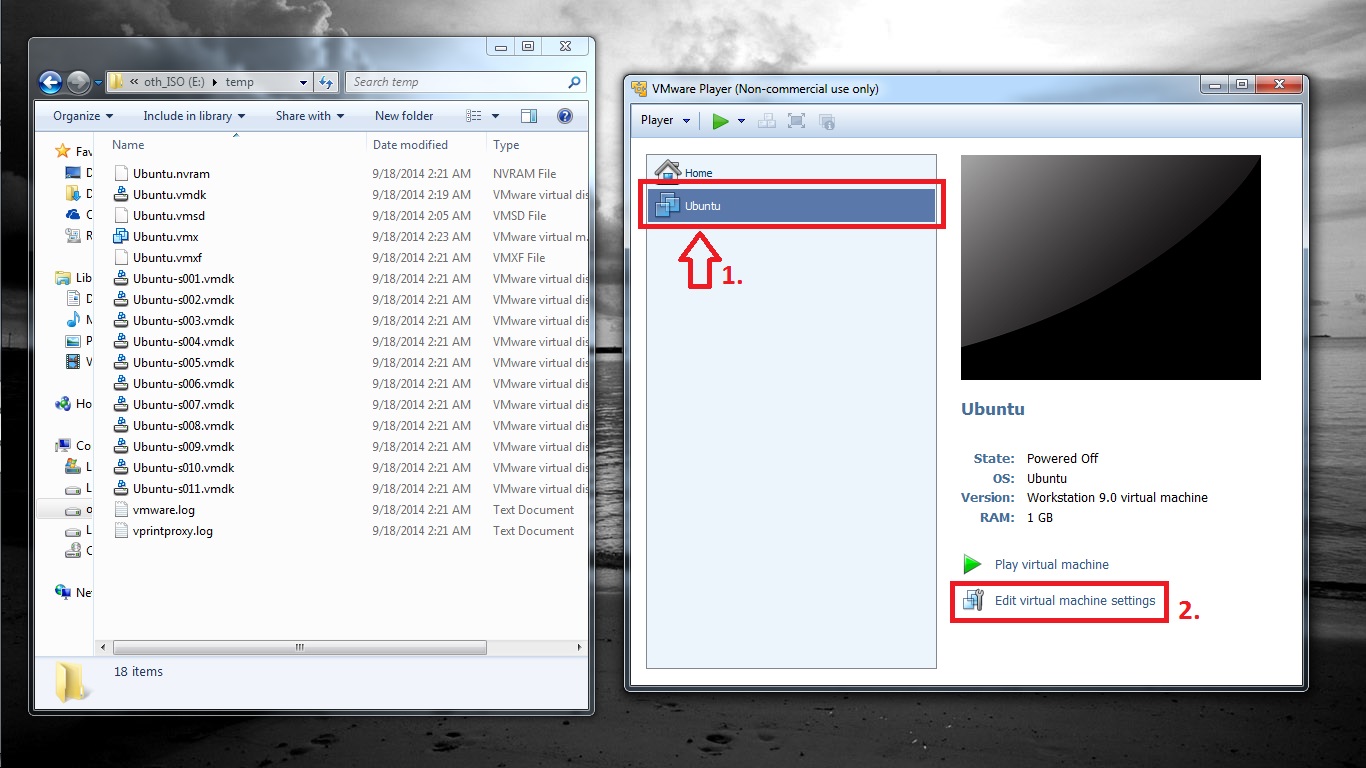

  • Once image is opened in VMware, select Virtual Machine and click on Edit virtual machine settings
external

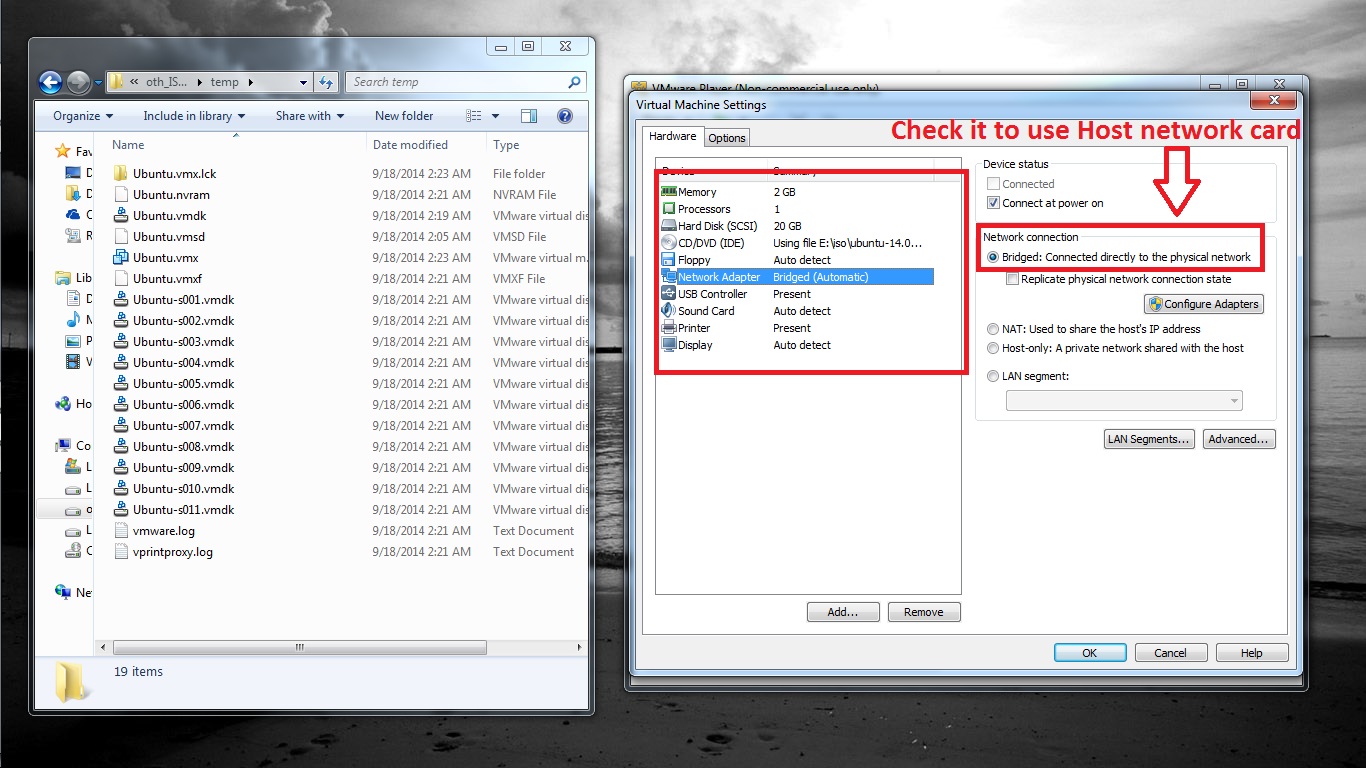

  • To use Network card that is already connected to Internet, navigate to Network Adapter
  • Select Bridged: Connected directly to the physical network
  • Virtual machine will automatically can connection to Internet without any configuration.
external

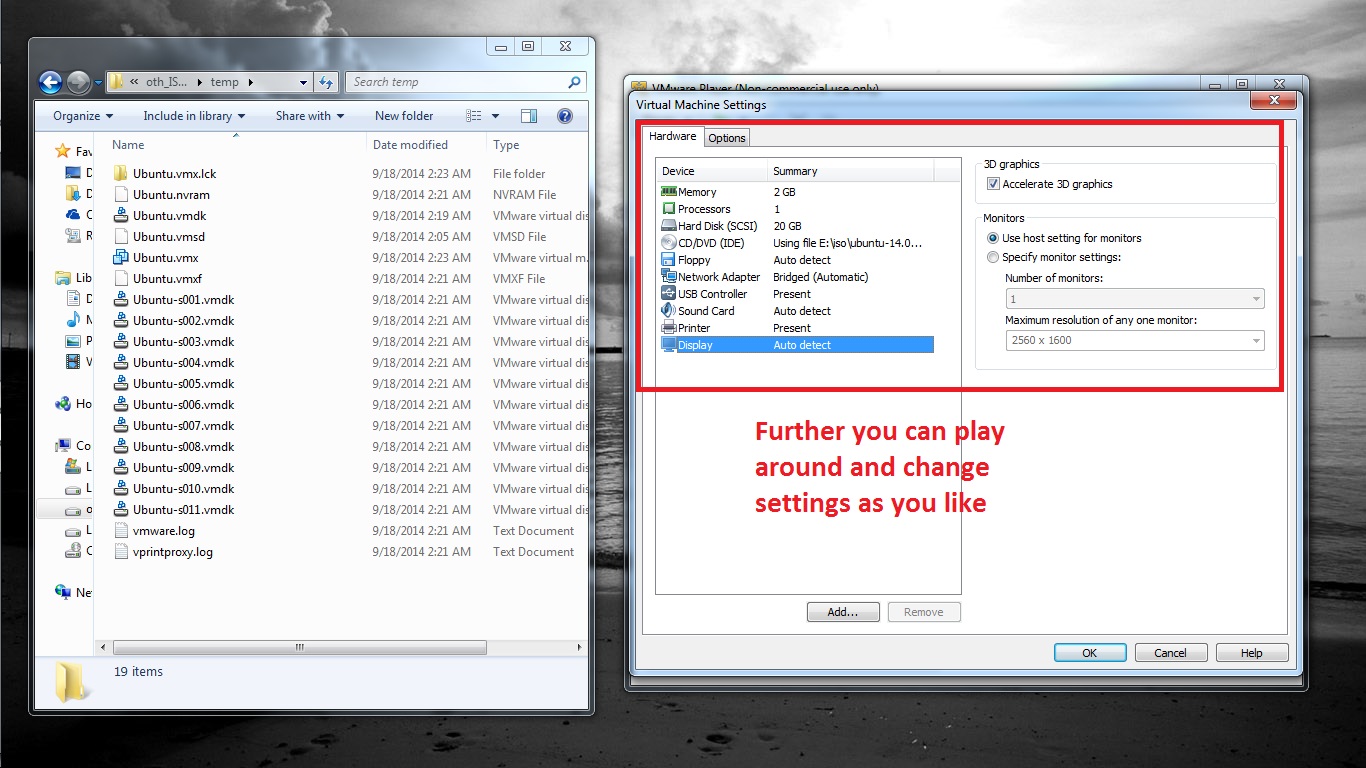

  • From Display enable Accelerate 3D graphics for better performance.
  • Further you can play around with settings but these were important to configure. Also keep in mind that changing some settings can be a problem, you may not be able to boot virtual machine then you have to change those settings back.
external

How to install VMware Tools?

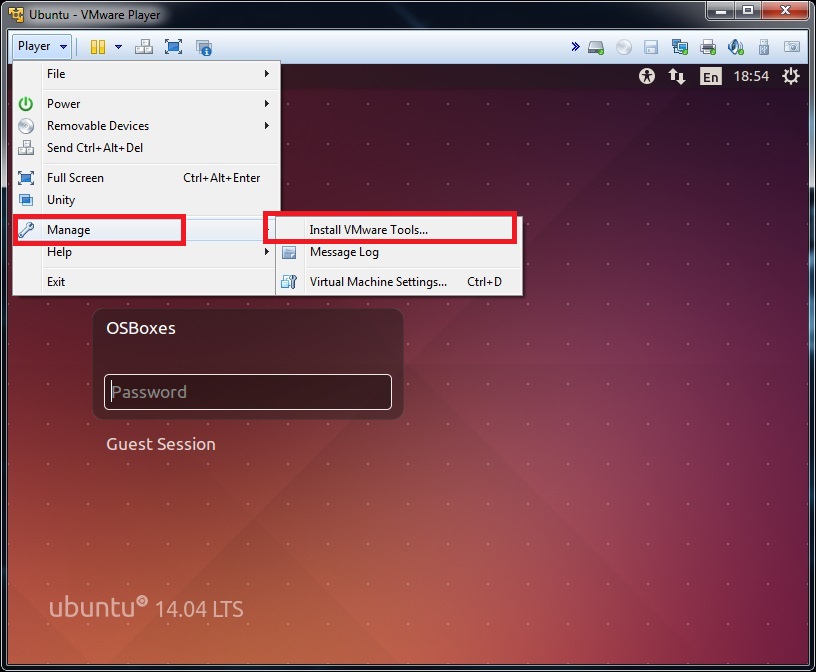

  • Once you turn on virtual machine, Go to menu Player
  • Select Install VMware Tools under Manage section.
external

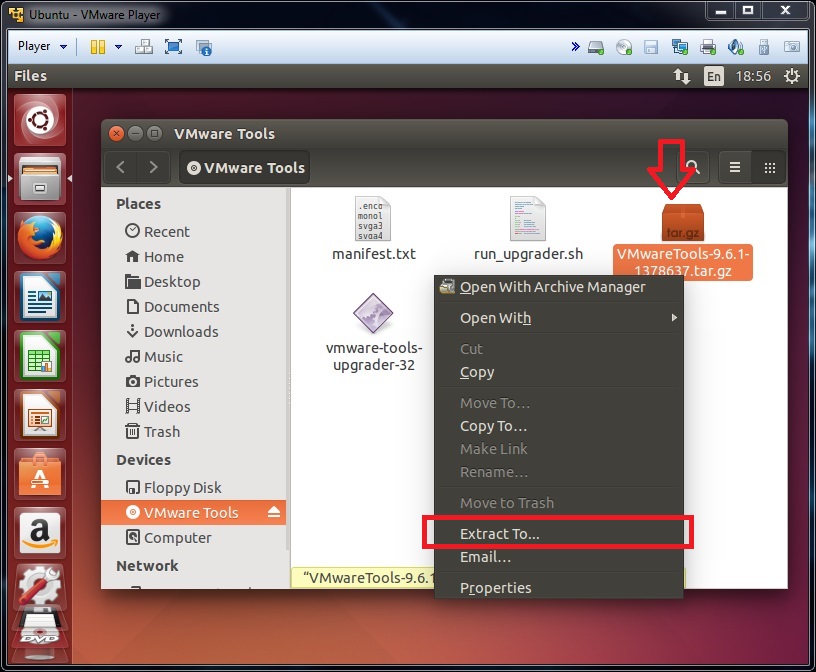

  • Go to VMware Tools where iso is mounted.
  • Right click on VMware-Tools-xxx.tar.gz file and select Extract To option then select directory and extract this archive.
external

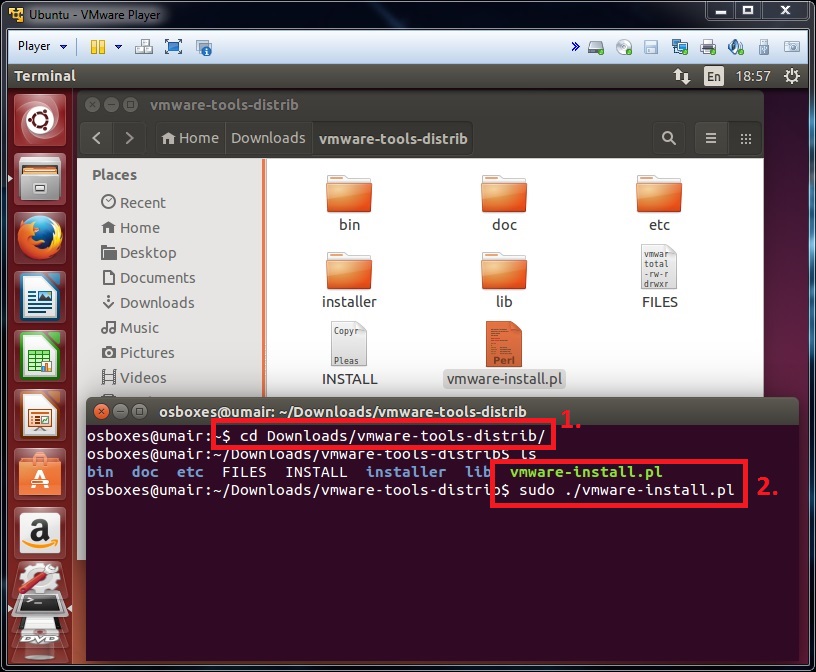

  • Now open Terminal
  • Go to directory where you extracted tools from Terminal
  • Here you will find out vmware-install.pl file
  • Enter this command to install Vmware Tools sudo ./vmware-install.pl
  • And follow instructions (To install these tools you don’t even need to change any default option, unless you need it).
external
